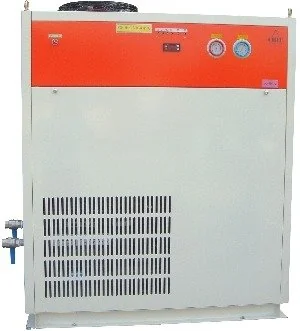

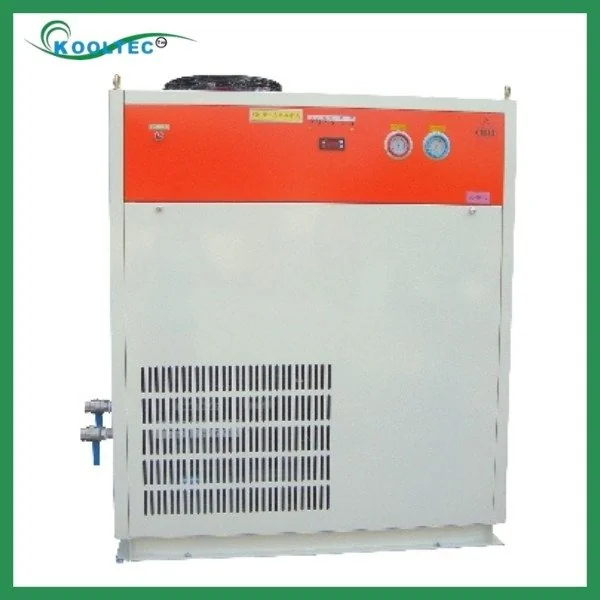

CHRFP-03AS Low-Temperature Chiller for CO2 Supercritical Foaming Systems
Refrigeration, Air Conditioning & Specialty Gas Recovery EquipmentBrand: KOOLTEC

Low-Temperature Chiller for CO2 Supercritical Foaming

Models in this series (1, select to view specs):
CHRFP-03AS
Key Engineering Highlights
Applicable Gases / RefrigerantsR-404A
Operating Power / VoltagePower Supply: 3Φx380Vx50/60HZ
Certifications工研院 TS 防爆型式認證合格 (Ex d IIB T4 / T6 等級)
Country of Origin100% Made in Taiwan (MIT)
Procurement Inquiries & Engineering Consultation
Email RFQ (Prefilled Model)Direct Call: +886-7-7874727
Dedicated Sales Email: [email protected]
International Support Line: +886-7-7874727 (Mon-Fri 08:30 - 17:30 GMT+8)

CHRFP-03AS Low-Temperature Chiller for CO2 Supercritical Foaming Systems is in our Refrigeration, Air Conditioning & Specialty Gas Recovery Equipment category. Key specifications: Power Supply 3Φx380Vx50/60HZ.

Specifications by Model

Select a model to expand its full specifications. Other catalog records of the same machine are listed for reference.

CHRFP-03ASCHRFP-03AS Low-Temperature Chiller for CO2 Supercritical Foaming Systems
Parameter ItemSpecification ValueUnit
Model NumberCHRFP-03AS-
Power Supply3Φx380Vx50/60HZ-
Compressor1.5HP-
CHRFP-03AS (Process Unit)Same machine, reference record
Parameter ItemSpecification ValueUnit
Model NumberCHRFP-03AS-
RefrigerantR-404A-
Weight（KG）250 KG-
Voltage3Φx380Vx50/60HZ-
Compressor1.5HP-
Dimensions (L x W x H)124x55x130 (L x W x H)-
Anti-freezingGlycol＋H-
Storage tank12Gal，SUS-304-
Circulating pump1HP，20PSIG，8GPM-
Heat interchangerSUS-304 Plate-Type Heat-Exchanger-
Expansion valve-40℃～＋10℃-
Electric control modeIC Board controller with LED indicators-
Model No.CHRFP-03AS-
Power Supply3Φx380Vx50/60HZ-
Compressor1.5HP-
Dimensions124×55×130cm (L×W×H)-
Voltage3Φ×380V×50/60HZ-
Refrigeration temperature14°F (-20°C)-
Dimensions (L x W x H)124Lx 55Wx 130HCM (LxWxH)-
Weight (KG)250 KG-
